Plot a Japan Map — plot

Plots Japan prefecture or municipal boundaries using ggplot2.

Usage

plot_jpmap(
  regions = c("prefectures", "prefecture", "municipalities", "municipality"),
  include = c(),
  exclude = c(),
  data = data.frame(),
  values = NULL,
  labels = FALSE,
  label_color = "black",
  data_year = NULL,
  inset = TRUE,
  okinawa = TRUE,
  ogasawara = TRUE,
  territorial_disputes = TRUE,
  disputed_fill = NULL,
  disputed_color = NULL,
  disputed_linewidth = NULL,
  disputed_dots = FALSE,
  disputed_dot_fill = "#001040",
  disputed_dot_color = "white",
  disputed_dot_size = 1.25,
  disputed_dot_stroke = 0.2,
  inset_boxes = TRUE,
  inset_box_color = "grey50",
  inset_box_linewidth = 0.35,
  data_dir = NULL,
  xlim = NULL,
  ylim = NULL,
  x_breaks = ggplot2::waiver(),
  y_breaks = ggplot2::waiver(),
  x_labels = ggplot2::waiver(),
  y_labels = ggplot2::waiver(),
  fill = "grey92",
  color = "grey35",
  linewidth = 0.25,
  ...
)

Arguments

regions: Boundary level: prefectures or municipalities.
include: Regions to include by code, English name, or Japanese name.
exclude: Regions to exclude by code, English name, or Japanese name.
data: Optional data frame to join to the map.
values: Column name in data to use as the fill variable.
labels: Whether to draw region labels.
label_color: Label text color.
data_year: Boundary data year.
inset: Inset behavior. Use TRUE to move both Okinawa and Ogasawara, FALSE for no movement, or a character vector containing "okinawa" and/or "ogasawara" to move selected island groups. For filtered municipality maps such as plot_jpmap("municipality", include = "Okinawa"), the default plot frame is local and non-inset unless inset is supplied explicitly.
okinawa: Whether Okinawa should be moved when inset includes it.
ogasawara: Whether Ogasawara should be moved when inset includes it.
territorial_disputes: Whether to include disputed-territory island/reef shapes. Use FALSE to exclude them, or a character vector containing one or more of "northern_territories", "okinotorishima", "senkaku", and "takeshima".
disputed_fill: Optional fill color for disputed-territory shapes. When NULL, the ordinary map fill is used.
disputed_color: Optional outline color for disputed-territory shapes. When NULL, the ordinary map outline is used.
disputed_linewidth: Optional line width for disputed-territory shapes.
disputed_dots: Whether to draw dot markers on disputed-territory shapes.
disputed_dot_fill: Fill color for disputed-territory dot markers.
disputed_dot_color: Outline color for disputed-territory dot markers.
disputed_dot_size: Size for disputed-territory dot markers.
disputed_dot_stroke: Stroke width for disputed-territory dot markers.
inset_boxes: Whether to draw boxes around transported Okinawa and Ogasawara insets.
inset_box_color: Outline color for inset boxes.
inset_box_linewidth: Line width for inset boxes.
data_dir: Optional directory containing jpmap_boundaries_YYYY.gpkg.
xlim, ylim: Optional longitude and latitude limits for the plot frame.
x_breaks, y_breaks: Optional longitude and latitude axis breaks.
x_labels, y_labels: Optional longitude and latitude axis labels.
fill: Boundary fill color when values is not supplied.
color: Boundary line color.
linewidth: Boundary line width.
...: Additional arguments passed to ggplot2::geom_sf().

Value

A ggplot2 plot.

Examples

if (nrow(available_jpmap_data()) > 0) {
  plot_jpmap("prefecture")
  plot_jpmap("prefecture", ogasawara = FALSE)
  plot_jpmap("prefecture", territorial_disputes = FALSE)
  plot_jpmap(
    "prefecture",
    ogasawara = FALSE,
    xlim = c(122, 149),
    ylim = c(28.5, 47),
    x_breaks = seq(125, 145, 5),
    y_breaks = seq(30, 45, 5)
  )
  plot_jpmap("prefecture", inset_boxes = FALSE)

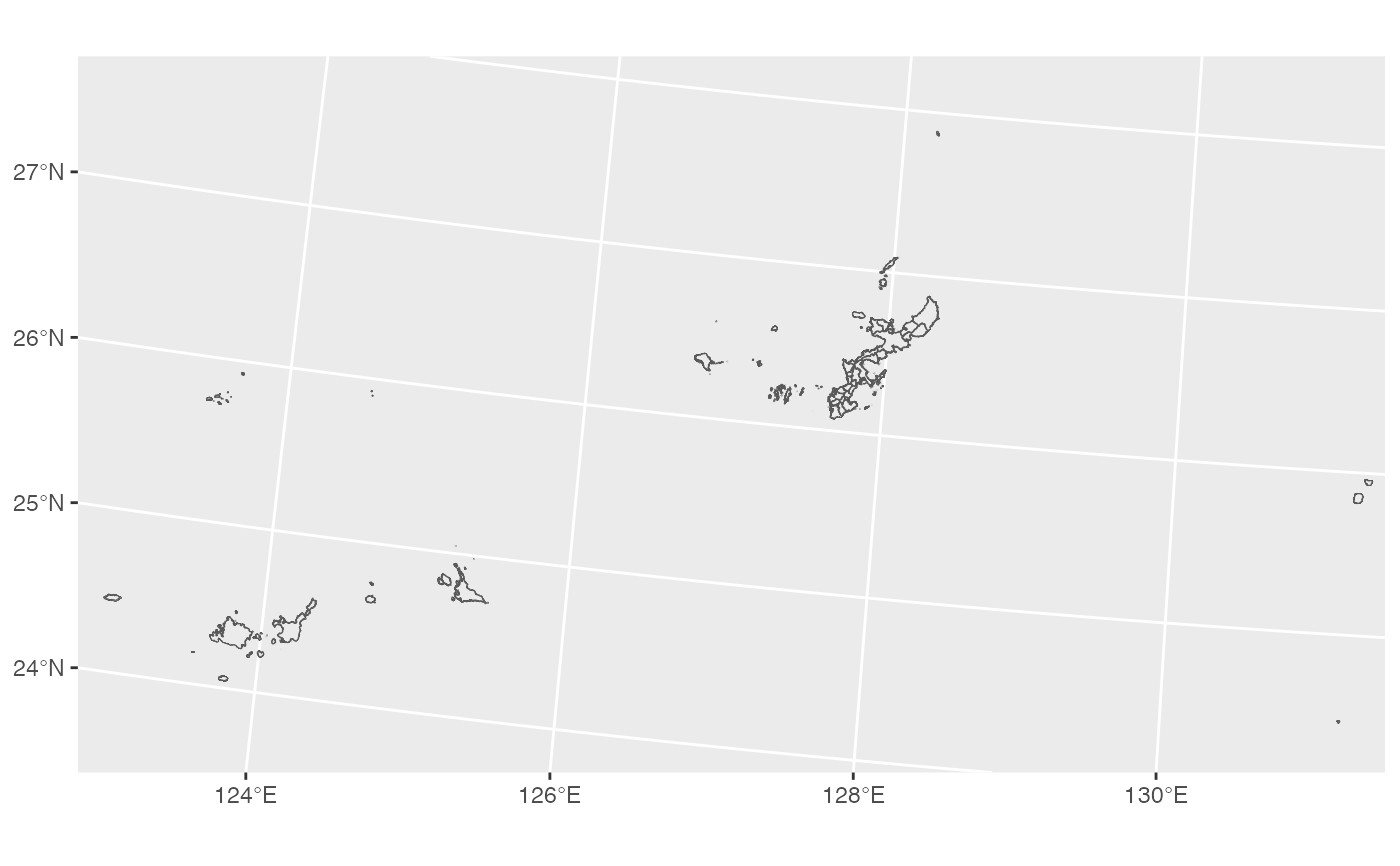

  plot_jpmap("municipality", include = "Okinawa")
}
